Miguelímetre, Catalan

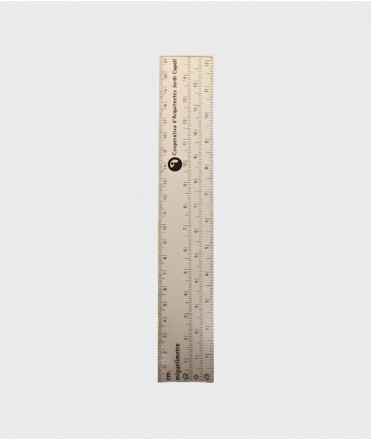

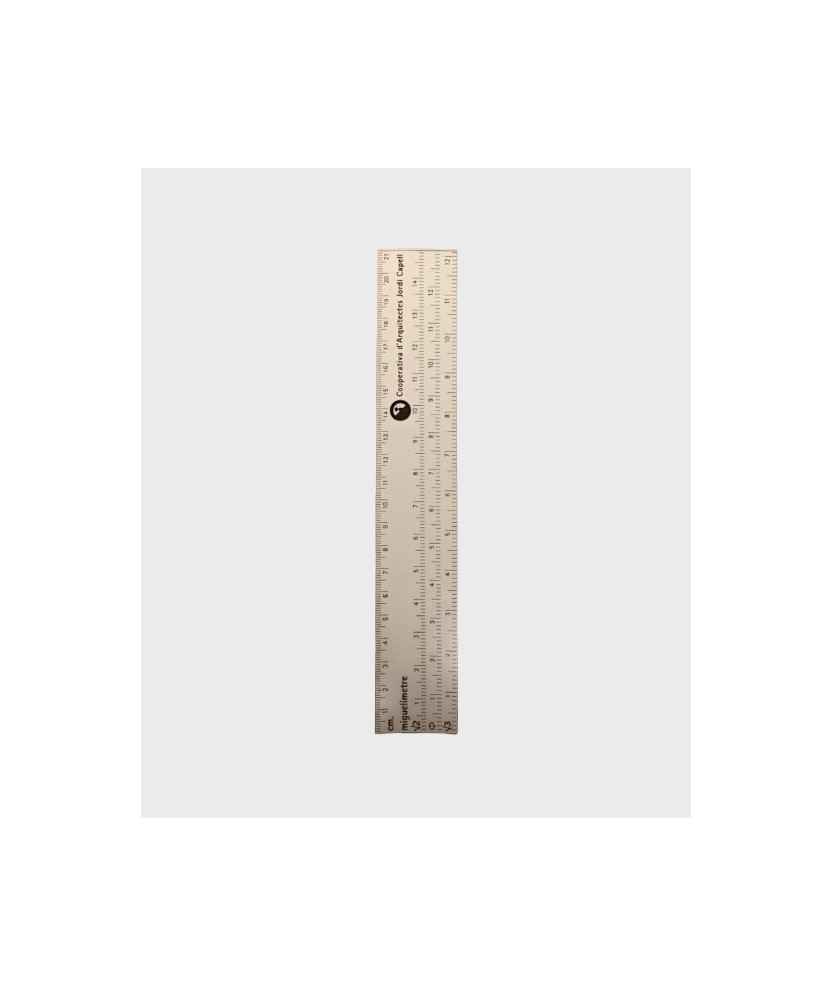

The Miguelímetre, designed by the architect Miguel Usandizaga, is an instrument for measuring lengths of up to 21 cm, similar a l a scalimeter, but in which the four scales of which it consists are on the same surface of transparent material. It is used to quickly check on illustrations si contain dimensions that are in the proportions of the root of two, three or the PI number.
